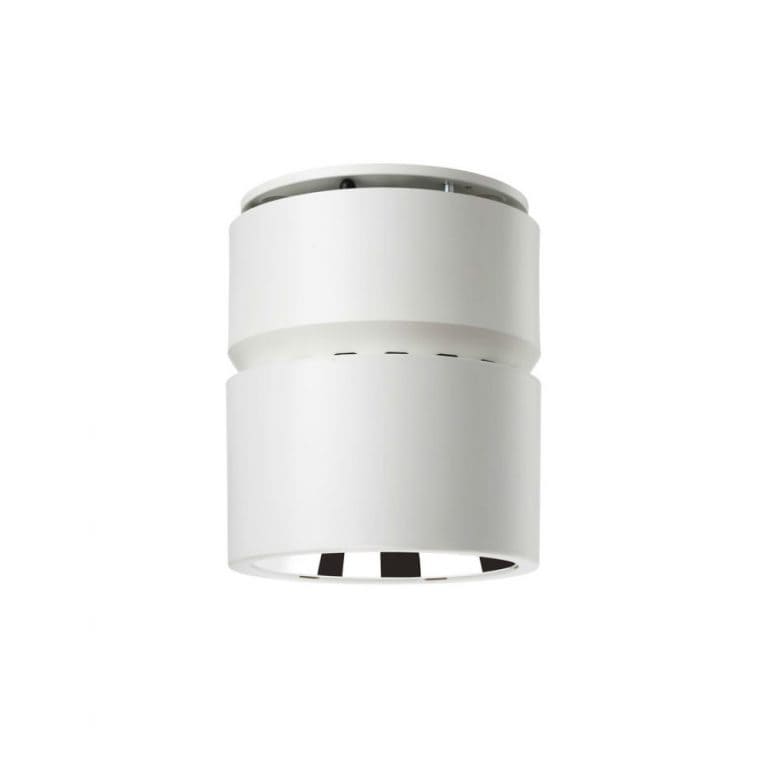

Philips DOWNLIGHT TYPE SM291C LED10 865 PSU WH GM

General information

Light source replaceable :

• No

Number of gear units :

• 1 unit

Driver included :

• Yes

Light source engine type :

• LED

Service tag :

• Yes

Warranty period :

• 3 years

Light Technical

Luminous Flux :

• 1,000 lm

Correlated Color Temperature (Nom) :

• 6500 K

Luminous Efficacy (rated) (Nom) :

• 100 lm/W

Color rendering index (CRI) :

• >80

Beam angle of light source :

• – degree(s)

Light source color :

• 865 cool daylight

Optic type :

• High-gloss mirror

Luminaire light beam spread :

• 90°

Operating and Electrical

Input Voltage :

• 220 to 240 V

Line Frequency :

• 50 or 60 Hz

Inrush current :

• 11 A

Inrush time :

• 0.003 ms

Power Consumption :

• 10 W

Power Factor (Fraction) :

• 0.9

Connection :

• –

Cable :

• –

Number of products on MCB of 16 A type B :

• 30

Suitable for random switching :

• No

Protection class IEC :

• Safety class I

Controls and Dimming

Dimmable :

• No

Driver/power unit/transformer :

• Power supply unit (On/Off)

Control interface :

• –

Constant light output :

• No

Mechanical and Housing

Housing Material :

• Aluminum die cast

Reflector material :

• Aluminum

Optic material :

• Aluminum

Optical cover material :

• –

Fixation material :

• –

Housing Color :

• White

Mounting device :

• Frame for recessed mounting

Optical cover finish :

• –

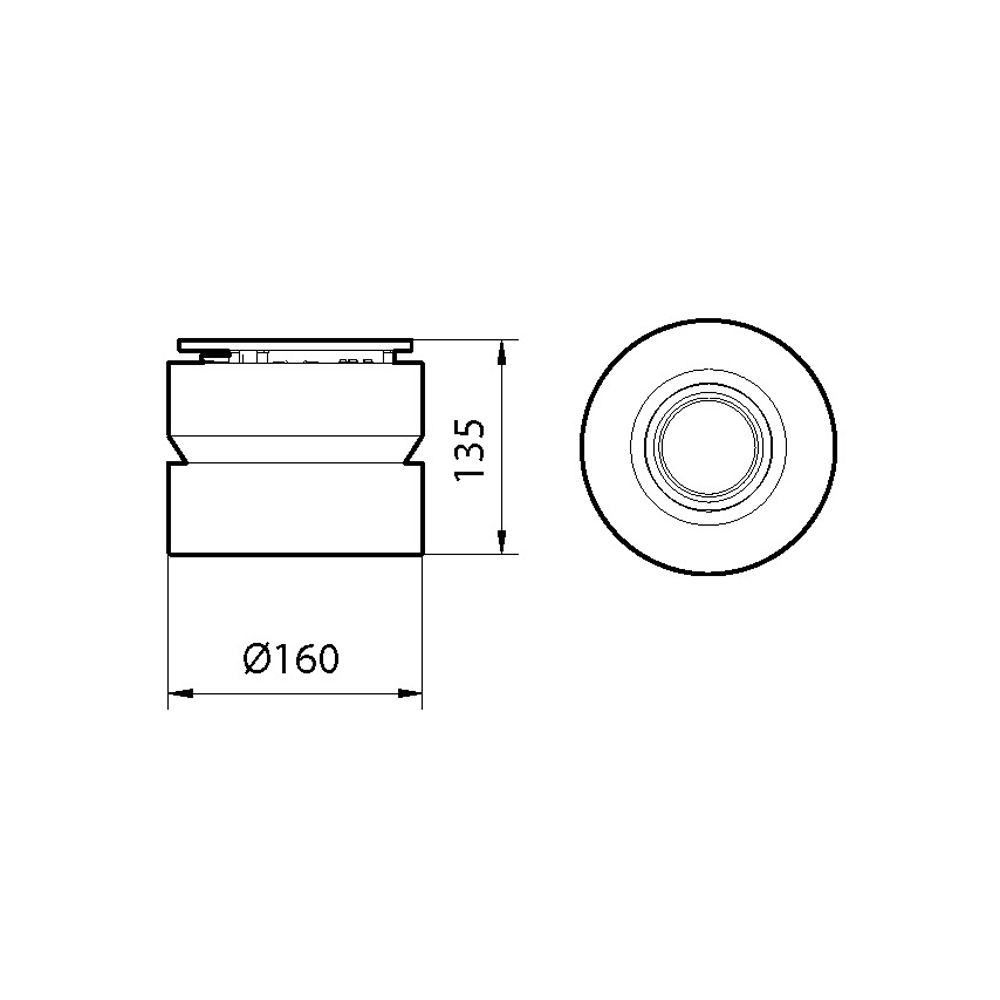

Overall length :

• 0 mm

Overall width :

• 0 mm

Overall height :

• 135 mm

Overall diameter :

• 160 mm

Dimensions (Height x Width x Depth) :

• 135 x 0 x 0 mm

Ingress protection code :

• IP20 [Finger-protected]

Mech. impact protection code :

• IK02 [0.2 J standard]

Optical cover type :

• Reflector

Net Weight (Piece) :

• 0.599 kg

Approval and Application

Glow-wire test :

• Temperature 750 °C, duration 5 s

Flammability mark :

• –

CE mark :

• Yes

ENEC mark :

• –

EU RoHS compliant :

• No

Ambient temperature range :

• -20 to +40 °C

Initial Performance (IEC Compliant)

Luminous flux tolerance :

• +/-10%

Initial chromaticity :

• (0.31, 0.32) SDCM <5

Power consumption tolerance :

• +/-10%

Over Time Performance (IEC Compliant)

Driver failure rate at 5000 h :

• 1.00 %

Median useful life L70B50 :

• 50,000 hour(s)

Median useful life L80B50 :

• 40,000 hour(s)

Median useful life L90B50 :

• 20,000 hour(s)

Product Data

Order product name :

• SM291C LED10/865 PSU WH GM

Full product name :

• SM291C LED10/865 PSU WH GM

Full product code :

• 872016972369600

Order code :

• 911401847399

Material Nr. (12NC) :

• 911401847399

Numerator – Quantity Per Pack :

• 1

EAN/UPC – Product/Case :

• 8720169723696

Numerator – Packs per outer box :

• 1

EAN/UPC – Case :

• 8720169723696
