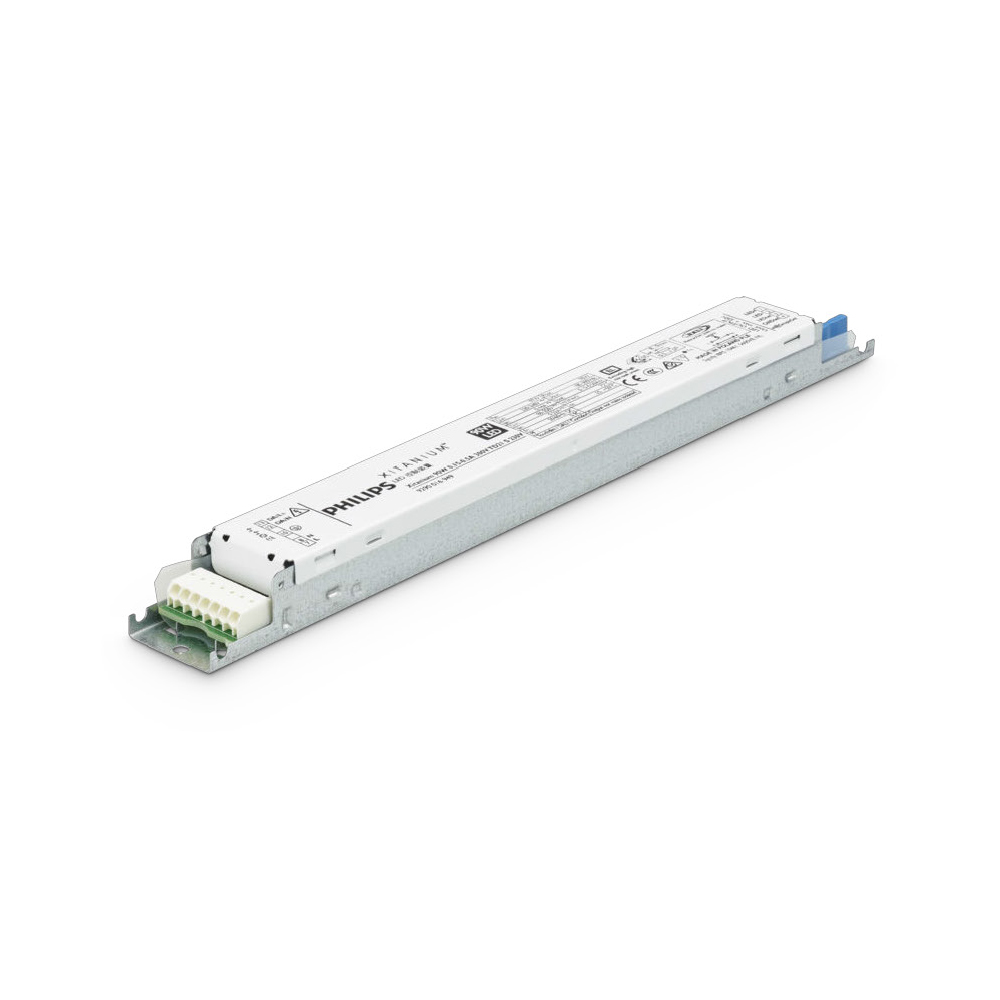

Philips Xitanium 35W 0.08-0.35A 150V S 230V LED Driver

Product description

Xitanium linear non-isolated drivers are ideal for high voltage (HV) professional general lighting applications.

The range includes DALI dimmable and programmable, 1-10V dimmable, non-dimmable and single current

versions. They offer high efficiency, good quality of light and full flexibility. The new generation of 16mm DALI

drivers offer ultimate performance. They comply with the latest DiiA standards, including implementation of

the new DALI parts related to data. Configuring the drivers can be done quickly and wirelessly with SimpleSet.

The new 21mm DALI drivers offer the best value for money.

General Information

Lighting Technology :

• LED

Operating and Electrical

Output Current (Max) :

• 350 mA

Output Power (Max) :

• 35 W

Output Power (Min) :

• 10 W

Output Current (Min) :

• 80 mA

Output Voltage (Max) :

• 150 V

Output Voltage (Min) :

• 50 V

Mechanical and Housing

Housing :

• Office 280x30x21 4p2p NFC

Product Data

Full product code :

• 871869655585900

Order product name :

• Xitanium 35W 0.08-0.35A 150V S 230V

Order code :

• 929001506406

Numerator – Quantity Per Pack :

• 1

Numerator – Packs per outer box :

• 24

Material Nr. (12NC) :

• 929001506406

Full product name :

• Xitanium 35W 0.08-0.35A 150V S 230V

EAN/UPC – Case :

• 8718696555866

EAN/UPC – Product/Case :

• 8718696555859
