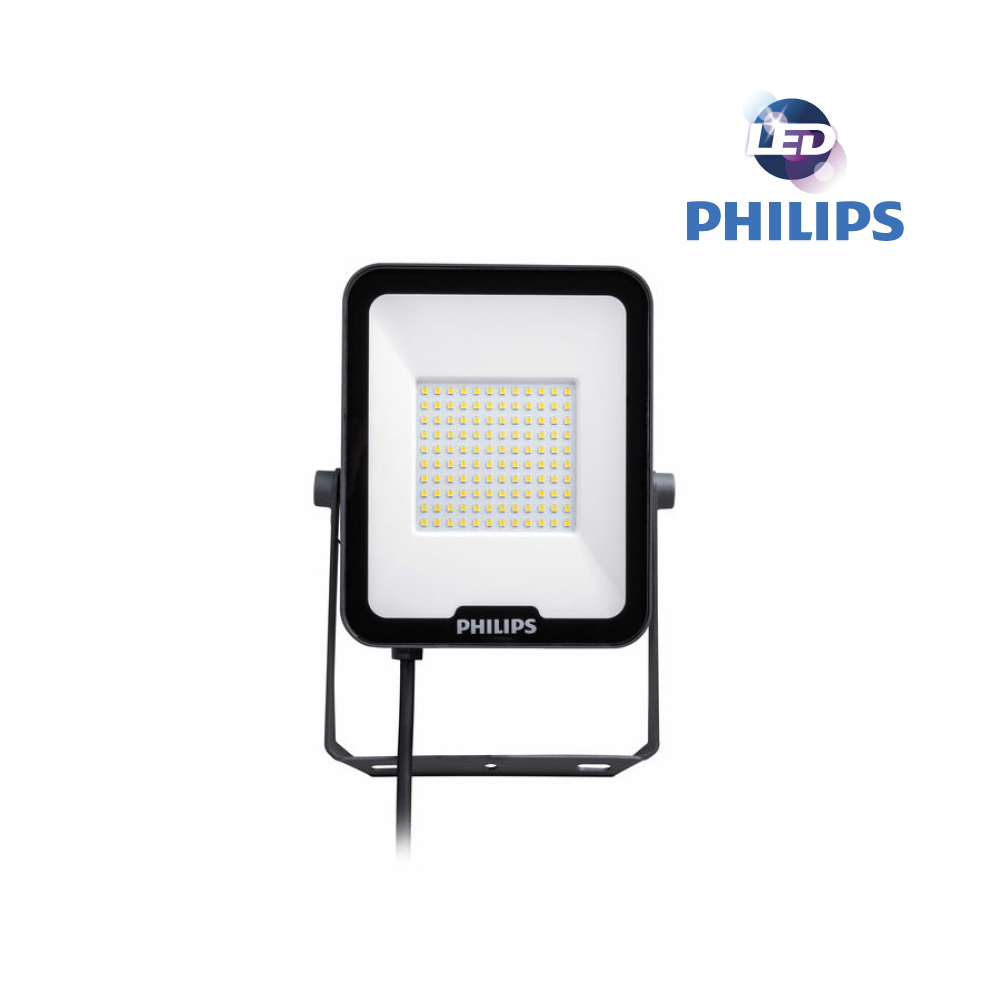

Philips FLOOD LIGHT TYPE BVP151 LED60 WW PSU 50W SWB G2 GM

General information

Driver included :

• Yes

Lighting Technology :

• LED

CE mark :

• –

Flammability mark :

• –

Light Technical

Luminous Flux :

• 5,500 lumen

Correlated Color Temperature (Nom) :

• 3000 K

Luminous Efficacy (rated) (Nom) :

• 110 lm/W

Color rendering index (CRI) :

• >80

Light source color :

• 830 warm white

Optical cover type :

• Glass

Operating and Electrical

Input Voltage :

• 220-240 V

Line Frequency :

• 50 or 60 Hz

Inrush current :

• 1.68 A

Power Consumption :

• 50 W

Power Factor (Fraction) :

• 0.95

Connection :

• Flying leads/wires

Cable :

• Cable 1.0 m without plug 3-pole

Number of products on MCB of 16 A type B :

• 44

Temperature

Ambient temperature range :

• -25 to +40 °C

Controls and Dimming

Dimmable :

• No

Control interface :

• –

Mechanical and Housing

Housing Material :

• Aluminum die-cast

Optical cover material :

• Tempered glass

Housing Color :

• Aluminum and gray

Overall length :

• 173 mm

Overall width :

• 232 mm

Overall height :

• 26.1 mm

Effective projected area :

• 0.028 m²

Dimensions (Height x Width x Depth) :

• 26 x 232 x 173 mm

Approval and Application

Ingress protection code :

• IP65 [Dust penetration-protected, jet-proof]

Mech. impact protection code :

• IK07 [2 J reinforced]

Protection class IEC :

• Safety class I

Initial Performance (IEC Compliant)

Luminous flux tolerance :

• +/-10%

Initial chromaticity :

• (0.440, 0.403) SDCM <5

Power consumption tolerance :

• +/-10%

Product Data

Order product name :

• BVP151 LED60/WW PSU 50W SWB G2 GM

Full product name :

• BVP151 LED60/WW PSU 50W SWB G2 GM

Full product code :

• 871951453409499

Order code :

• 53409499

Material Nr. (12NC) :

• 911401844183

Numerator – Quantity Per Pack :

• 1

EAN/UPC – Product/Case :

• 8719514534094

Numerator – Packs per outer box :

• 16

EAN/UPC – Case :

• 8719514534339
