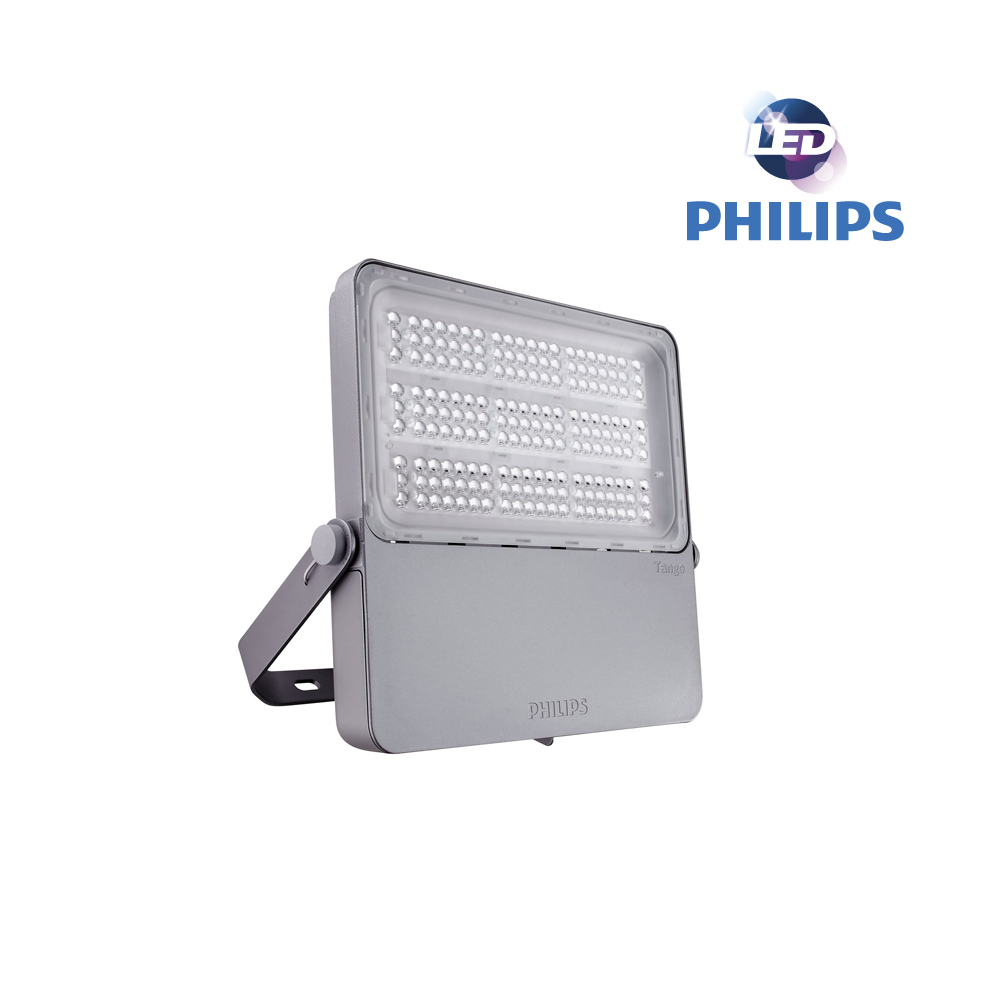

Philips FLOOD LIGHT TYPE BVP433 LED413 CW 305W SWB GM

General information

Lamp colour code :

• 757 cool white

Driver included :

• Yes

Optical cover/lens type :

• PC [ Polycarbonate bowl/cover]

Control interface :

• –

Connection :

• Flying leads/wires

Cable :

• Cable 1.5 m without plug (C1K5)

Protection class IEC :

• Safety class I (I)

CE mark :

• CE mark

Operating and electrical

Input Voltage :

• 220 to 240 V

Input frequency :

• 50 or 60 Hz

Power factor (min.) :

• 0.9

Controls and dimming

Dimmable :

• No

Mechanical and housing

Housing material :

• Aluminum die–cast

Optical cover/lens material :

• Polycarbonate

Overall length :

• 523 mm

Overall width :

• 559 mm

Overall height :

• 71 mm

Colour :

• Grey

Dimensions (height x width x depth) :

• 71 x 559 x 523 mm

Approval and application

Ingress protection code :

• IP66 [ Dust penetration-protected, jet-proof]

Mech. impact protection code :

• IK08 [ 5 J vandal-protected]

Initial performance (IEC compliant)

Initial luminous flux (system flux) :

• 41300 lm

Luminous flux tolerance :

• +/-10%

Initial LED luminaire efficacy :

• 135 lm/W

Lamp colour temperature :

• 5700 K

Colour Rendering Index :

• >70

Initial input power :

• 305 W

Power consumption tolerance :

• +/-10%

Application conditions

Ambient temperature range :

• -40 to +50 °C

Product data

Full product code :

• 871951454091000

Order product name :

• BVP433 LED413/CW 220~240V 305W SWB GM

EAN/UPC – product :

• 8719514540910

Order code :

• 911401601607

SAP numerator – quantity per pack :

• 1

Numerator – packs per outer box :

• 1

SAP material :

• 911401601607

Net Weight (Piece) :

• 12.160 kg
