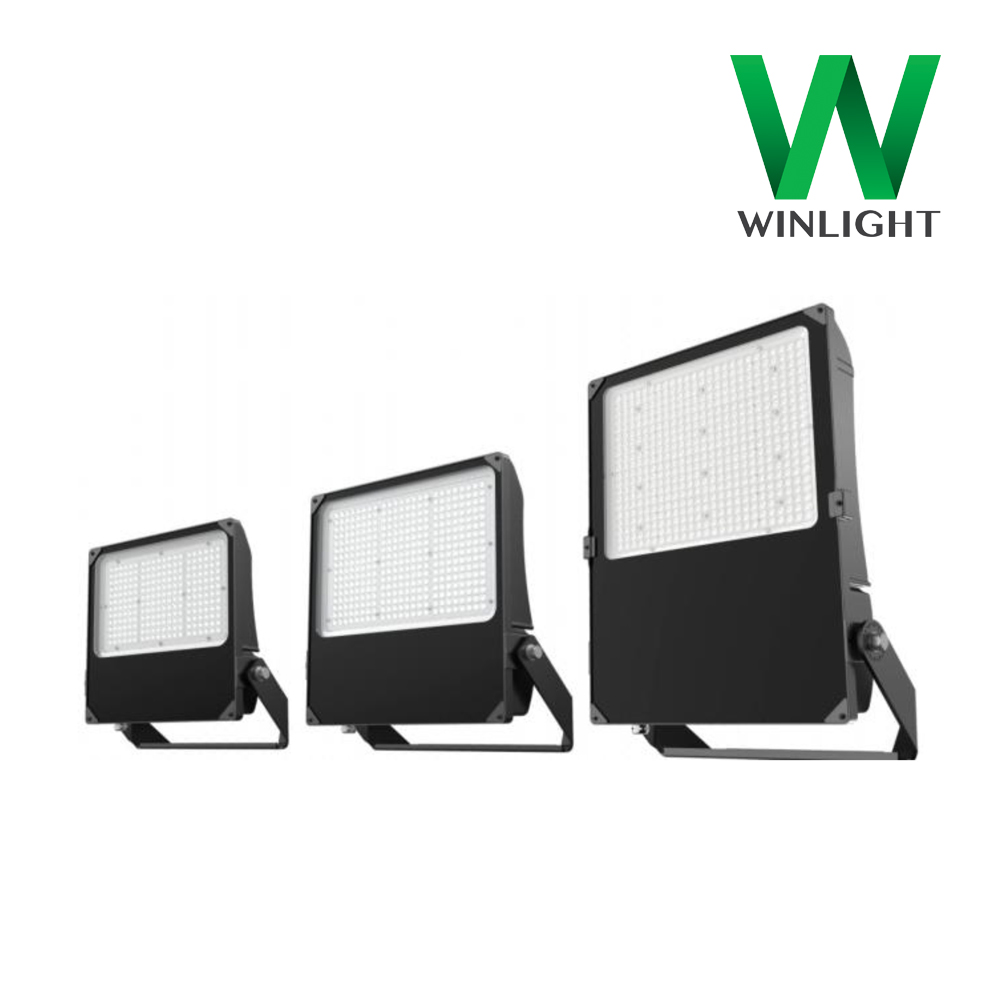

โคมไฟ Winlight FLOOD LIGHT CASTER

SPECIFICATION

Series : CASTER

Rated Power (W) :

• 50W
• 100W
• 150W
• 200W
• 300W
• 400W
• 500W

Input Voltage :

• 220-240Vac , 50Hz

Power Factor :

• > 0.9

Harmonic (%THDi) :

• < 15%

Color Temperature :

• 3000K , 4000K , 5000K

Efficacy (lm/W) :

• 150

CRI :

• 70 Ra (Option 80 Ra)

Beam Angle :

• 30° , 60° , Asymmetrical

Driver :

• Done : 50W
• SOSEN : 100W , 150W , 200W , 400W , 500W
• INVENTRONICS : 300W

LED Chip :

• SMD #2835

Housing Meterials :

• Aluminium Alloy , Tempered Glass and Polycarbonate Optical Cover

Color :

• Black

Operating Temperature :

• – 30°C to +50°C

Protection Class :

• IP 66

IK Grade :

• IK 08

Installation :

• Standard Bracket

Surge Protection :

• 6KV line-earth (50W)
• 10KV line-earth (100W , 150W , 200W)
• 12KV line-earth (300W)
• 20KV line-earth (400W , 500W)
