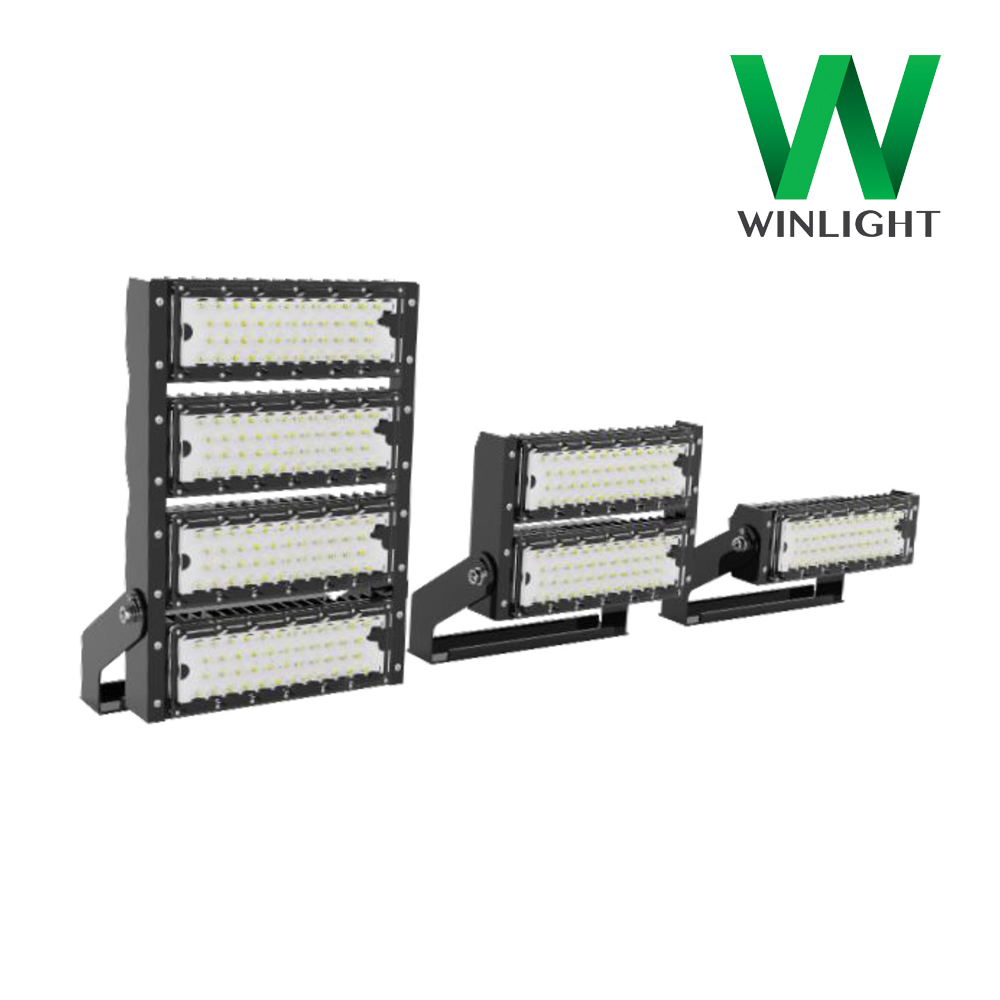

โคมไฟ Winlight FLOOD LIGHT MHA V2

SPECIFICATION

Series : MHA V2

Rated Power (W) :

• 150W
• 300W
• 450W
• 600W
• 800W

Input Voltage :

• 100-277Vac

Power Factor :

• > 0.95

Harmonic (%THDi) :

• < 10%

Color Temperature :

• 3000K , 4000K , 5700K

Efficacy (lm/W) :

• 140

CRI :

• > 70 Ra (Option 80 Ra)

Beam Angle :

• 15° (Option 20° , 40° , 60° , 90°)

Driver :

• DONE or equivalent

LED Chip :

• Lumileds #46pcs/Module , 5W/pcs 50000Hrs Life Time @L70 , IEC62471

Housing Meterials :

• Die-casting Aluminium with PC lens UV Protect

Heatsink :

• Passive Cooling Heatsink

Standard :

• IEC60598-2-3

Operating Temperature :

• – 40°C to +50°C

Protection Class :

• IP 66 / IEC60529

Installation :

• Standard Bracket
