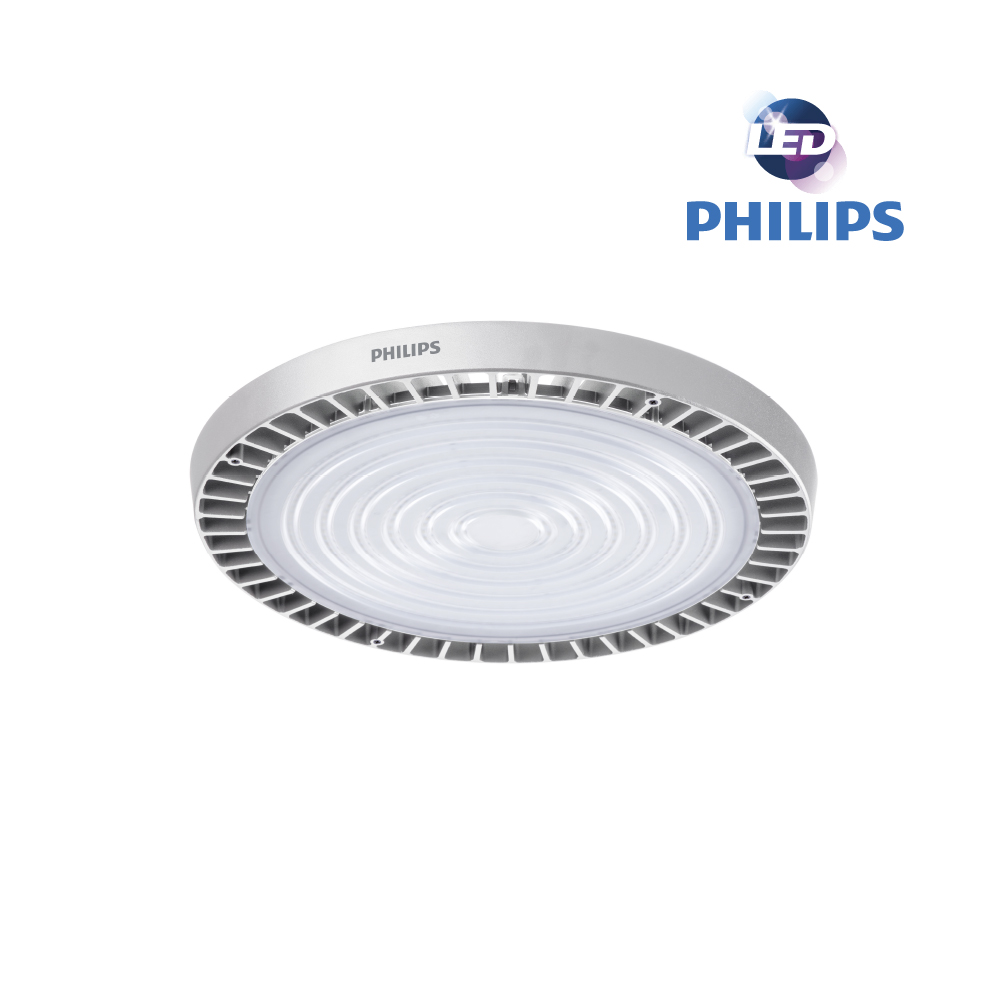

Philips HIGHBAY TYPE BY518P LED300 CW PSU WB GM

General information

Lamp colour code :

• 865 cool daylight

Optical cover/lens type :

• Lens

Control interface :

• –

Protection class IEC :

• Safety class I (I)

CE mark :

• CE mark

Number of products on MCB (16 A type B) :

• 6

Light source engine type :

• LED

Operating and electrical

Input Voltage :

• 220-240 V

Input frequency :

• 50 or 60 Hz

Inrush current :

• 0.88 A

Power factor (min.) :

• 0.95

Controls and dimming

Dimmable :

• No

Mechanical and housing

Housing material :

• Aluminium

Optical cover/lens material :

• Polycarbonate

Optical cover/lens finish :

• Matte

Overall height :

• 99 mm

Overall diameter :

• 416 mm

Effective projected area :

• 0.06 m²

Colour :

• Grey

Dimensions (height x width x depth) :

• 99 x NaN x NaN mm

Approval and application

Ingress protection code :

• IP65 [ Dust penetration-protected, jet-proof]

Mech. impact protection code :

• IK06 [ 1 J]

Initial performance (IEC compliant)

Initial luminous flux (system flux) :

• 30000 lm

Luminous flux tolerance :

• +/-10%

Initial LED luminaire efficacy :

• 143 lm/W

Lamp colour temperature :

• 6500 K

Colour Rendering Index :

• >80

Initial chromaticity :

• (0.316, 0.332) SDCM<5

Initial input power :

• 207 W

Power consumption tolerance :

• +/-10%

Application conditions

Ambient temperature range :

• -20 to +45 °C

Product data

Full product code :

• 871951453657999

Order product name :

• BY518P LED300/CW PSU WB GM

EAN/UPC – product :

• 8719514536579

Order code :

• 911401648107

SAP numerator – quantity per pack :

• 1

Numerator – packs per outer box :

• 2

SAP material :

• 911401648107

Net Weight (Piece) :

• 3.690 kg
