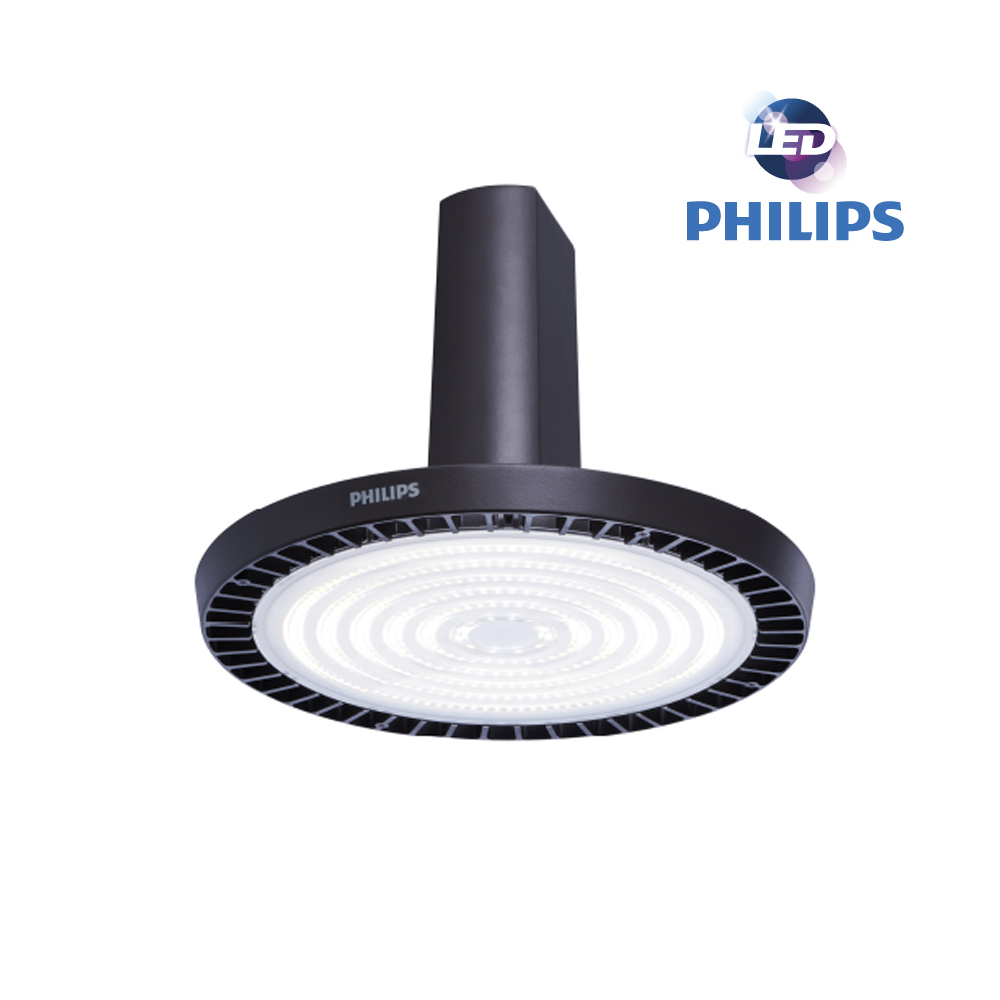

Philips HIGHBAY TYPE BY698P LED155 CW PSD WB GM G2

General information

Beam angle of light source :

• 90°

Lamp colour code :

• 865 cool daylight

Light source replaceable :

• No

Number of gear units :

• 1

Driver/power unit/transformer :

• PSU [ Power supply unit]

Driver included :

• Yes

Optic type :

• 90 [ Beam angle 90°]

Optical cover/lens type :

• Without cover

Luminaire light beam spread :

• 90°

Control interface :

• DALI

Connection :

• No [ – ]

Cable :

• Cable 0.3 m without plug

Protection class IEC :

• Safety class I (I)

Glow-wire test :

• 750/5 [ Temperature 750 °C, duration 5 s]

Flammability mark :

• F [ For mounting on normally flammable surfaces]

CE mark :

• CE mark

ENEC mark :

• –

Warranty period :

• 3 years

Constant light output :

• Programmable

Number of products on MCB (16 A type B) :

• 13

EU RoHS compliant :

• Yes

Light source engine type :

• LED

Operating and electrical

Input Voltage :

• 220 to 240 V

Input frequency :

• 50 or 60 Hz

Initial CLO power consumption :

• 124 W

Average CLO power consumption :

• 124 W

Inrush current :

• 53 A

Inrush time :

• 0.3 ms

Power factor (min.) :

• 0.95

Controls and dimming

Dimmable :

• Yes

Mechanical and housing

Housing material :

• Aluminum die–cast

Reflector material :

• Aluminium

Optic material :

• Polycarbonate

Optical cover/lens material :

• Polycarbonate

Fixation material :

• Aluminium

Optical cover/lens finish :

• Clear

Overall height :

• 335 mm

Overall diameter :

• 307 mm

Colour :

• Grey

Dimensions (height x width x depth) :

• 335 x NaN x NaN mm

Approval and application

Ingress protection code :

• IP65 [ Dust penetration-protected, jet-proof]

Mech. impact protection code :

• IK08 [ 5 J vandal-protected]

Initial performance (IEC compliant)

Initial luminous flux (system flux) :

• 15500 lm

Luminous flux tolerance :

• +/-10%

Initial LED luminaire efficacy :

• 125 lm/W

Lamp colour temperature :

• 6500 K

Colour Rendering Index :

• >80

Initial input power :

• 124 W

Power consumption tolerance :

• +/-10%

Over time performance (IEC compliant)

Driver failure rate at 5,000 hours :

• 0.1 %

Median useful life L70B50 :

• 50000 h

Application conditions

Ambient temperature range :

• -30 to +45 °C

Maximum dimming level :

• 5% (1 to 10 V)

Suitable for random switching :

• No

Product data

Full product code :

• 911401534561

Order product name :

• BY698P LED155/CW PSD WB GM G2

Order code :

• 911401534561

SAP numerator – quantity per pack :

• 1

Numerator – packs per outer box :

• 1

SAP material :

• 911401534561

Net Weight (Piece) :

• 4.099 kg
