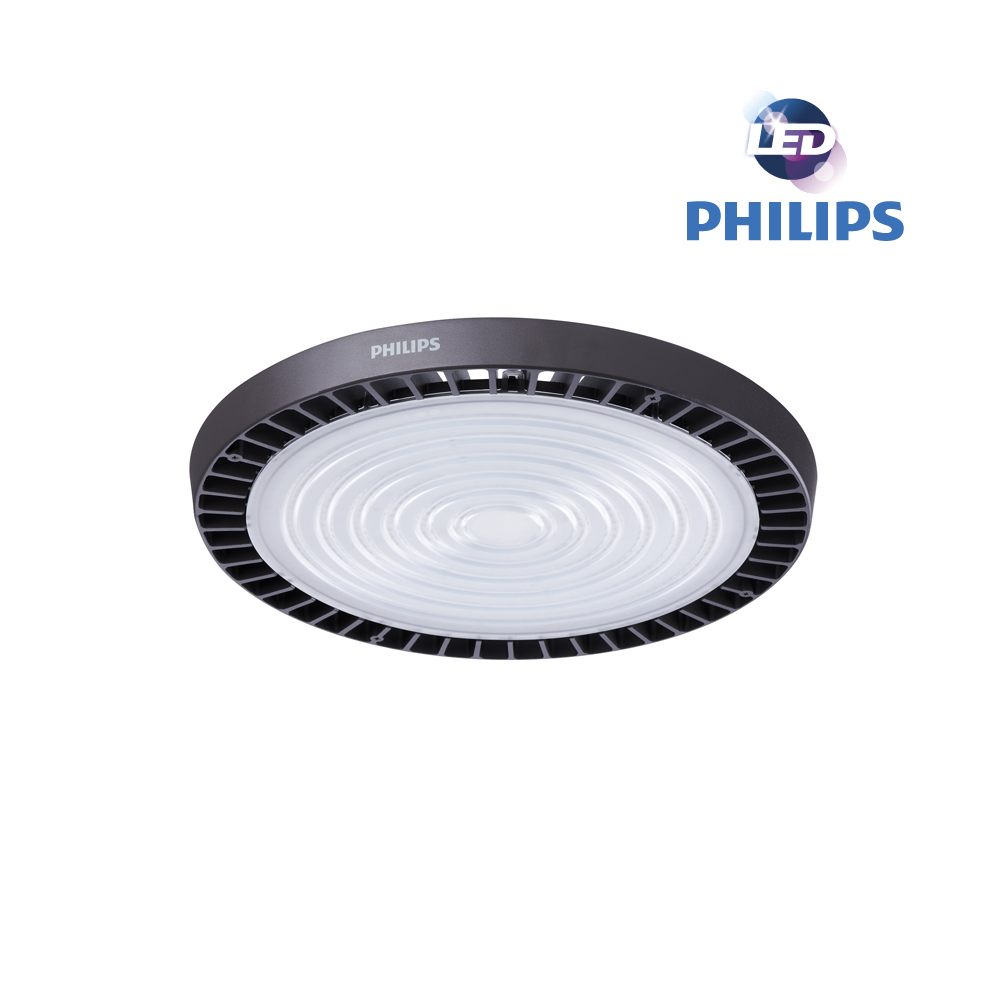

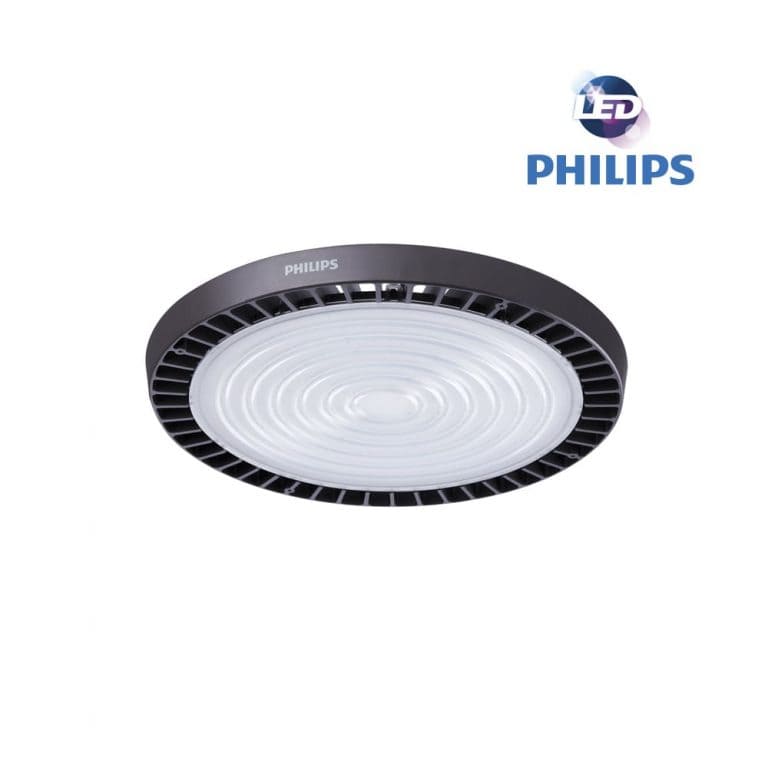

Philips HIGHBAY TYPE BY698P LED265 CW PSU WB GM G2

General information

Lamp colour code :

• 865 cool daylight

Light source replaceable :

• No

Number of gear units :

• 2

Driver/power unit/transformer :

• PSU [ Power supply unit]

Driver included :

• Yes

Optic type :

• Symmetrical

Optical cover/lens type :

• PC [ Polycarbonate bowl/cover]

Luminaire light beam spread :

• 90°

Control interface :

• –

Cable :

• Cable 0.3 m without plug

Protection class IEC :

• Safety class I (I)

Glow-wire test :

• 650/30 [ Temperature 650 °C, duration 30 s]

Flammability mark :

• F [ For mounting on normally flammable surfaces]

CE mark :

• CE mark

ENEC mark :

• –

Warranty period :

• 3 years

Constant light output :

• No

Number of products on MCB (16 A type B) :

• 8

EU RoHS compliant :

• Yes

Light source engine type :

• LED

Service Tag :

• Yes

Operating and electrical

Input Voltage :

• 220 to 240 V

Input frequency :

• 50 or 60 Hz

Inrush current :

• 64 A

Inrush time :

• 0.75 ms

Power factor (min.) :

• 0.95

Controls and dimming

Dimmable :

• No

Mechanical and housing

Housing material :

• Aluminium

Reflector material :

• –

Optic material :

• Polycarbonate

Optical cover/lens material :

• Polycarbonate

Optical cover/lens finish :

• Clear

Overall height :

• 99 mm

Overall diameter :

• 416 mm

Colour :

• Grey

Dimensions (height x width x depth) :

• 99 x NaN x NaN mm

Approval and application

Ingress protection code :

• IP65 [ Dust penetration-protected, jet-proof]

Mech. impact protection code :

• IK08 [ 5 J vandal-protected]

Initial performance (IEC compliant)

Initial luminous flux (system flux) :

• 26500 lm

Luminous flux tolerance :

• +/-10%

Initial LED luminaire efficacy :

• 135 lm/W

Lamp colour temperature :

• 6500 K

Colour Rendering Index :

• >80

Initial input power :

• 192 W

Power consumption tolerance :

• +/-10%

Over time performance (IEC compliant)

Median useful life L70B50 :

• 50000 h

Application conditions

Ambient temperature range :

• -30 to +50 °C

Maximum dimming level :

• Not applicable

Suitable for random switching :

• No

Product data

Full product code :

• 911401518361

Order product name :

• BY698P LED265/CW PSU WB GM G2

Order code :

• 911401518361

SAP numerator – quantity per pack :

• 1

Numerator – packs per outer box :

• 1

SAP material :

• 911401518361

Net Weight (Piece) :

• 4.099 kg
