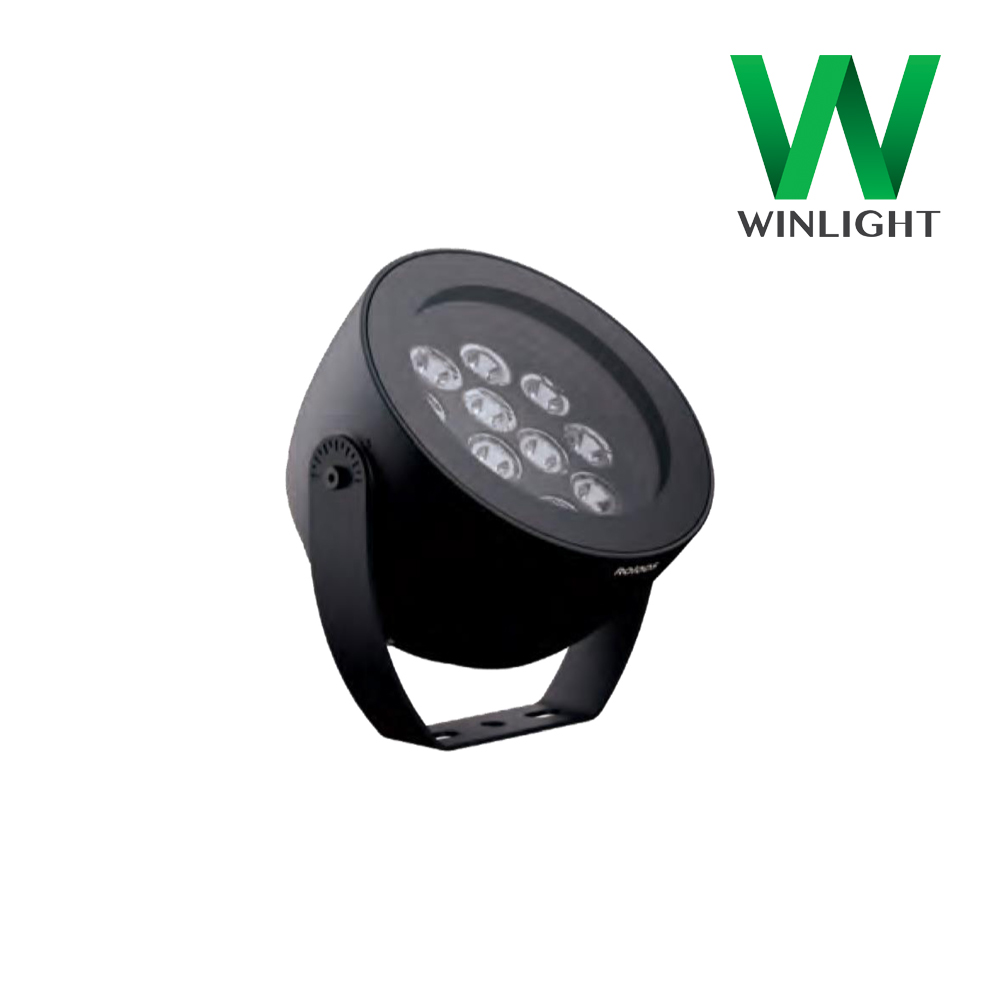

โคมไฟ Winlight SPOT LIGHT MFLR/24

SPECIFICATION

Series : MFLR/24

Rated Power (W) :

• 24W

Input Voltage :

• 220-240Vac , 50Hz

Power Factor :

• > 0.9

Color Temperature :

• 2700K , 5000K

Efficacy (lm/W) :

• 59 (2700K)
• 66 (5000K)

Luminous Flux (lm) :

• 1430 (2700K)
• 1600 (5000K)

CRI :

• 80 Ra

Beam Angle :

• 8° , 15° , 30°

Driver :

• Inventronics (EUC-026S) Output 36V
• Position : External Box

LED Chip :

• Osram Osconiq P3737 (Option : Oslon SSL)

Housing Meterials :

• Die-casting Aluminium with Tempered Glass Cover

Color :

• Black

Operating Temperature :

• – 40°C to +50°C

Protection Class :

• IP 66

Life Time :

• >50000 Hrs (>42000 Hrs for 8° CCT2700K)

Surge Protection :

• 4KV line-line
• 6KV line-earth
