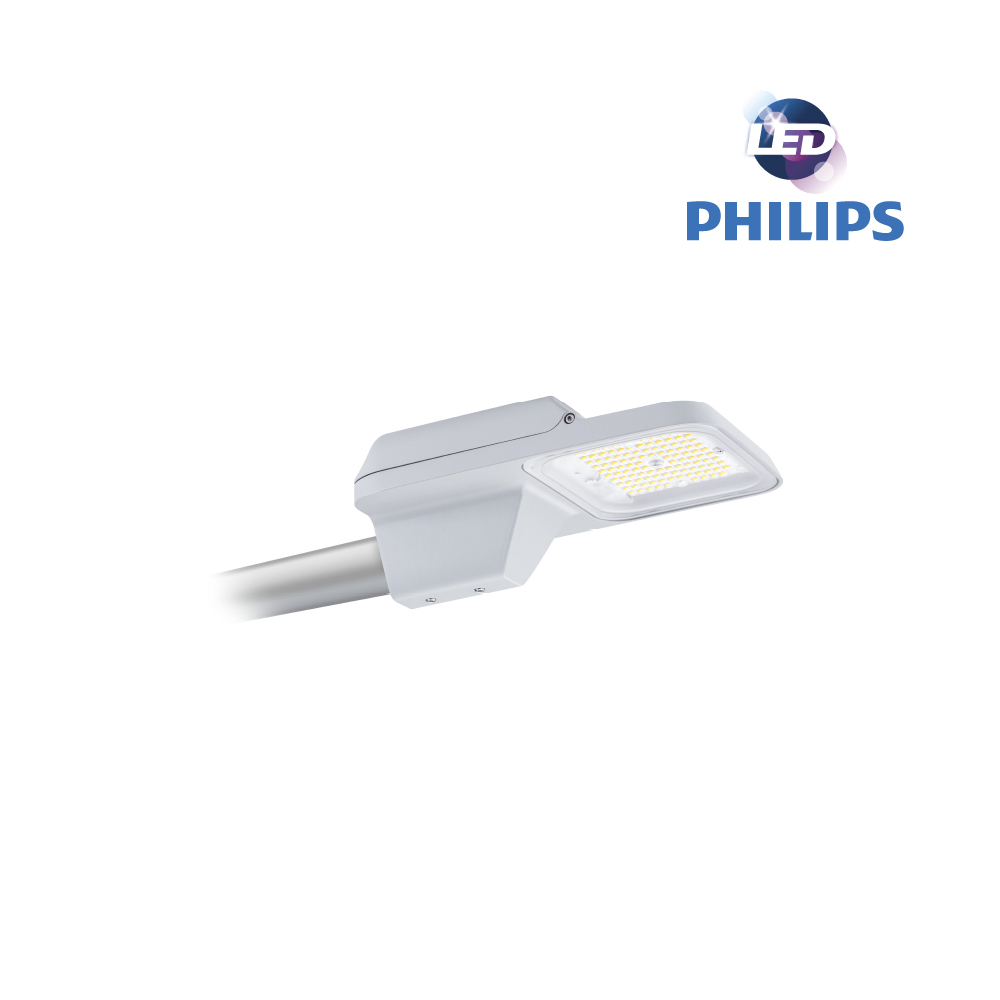

Philips STREET LIGHT TYPE BRP491 LED115 NW 80W 220-240V DM GM

General information

Lamp colour code :

• 740 neutral white

Driver included :

• Yes

Optical cover/lens type :

• PC-MLO [ Polycarbonate micro lens optic]

Control interface :

• Analog

Connection :

• SI [ Screw connection block]

Cable :

• –

Protection class IEC :

• Safety class I (I)

CE mark :

• CE mark

Operating and electrical

Input Voltage :

• 220 to 240 V

Input frequency :

• 50 or 60 Hz

Power factor (min.) :

• 0.95

Controls and dimming

Dimmable :

• Yes

Mechanical and housing

Housing material :

• Aluminium pressure die cast

Optical cover/lens material :

• Polycarbonate

Overall length :

• 355 mm

Overall width :

• 230 mm

Overall height :

• 136 mm

Colour :

• Aluminium and Grey

Dimensions (height x width x depth) :

• 136 x 230 x 355 mm

Approval and application

Ingress protection code :

• IP66 [ Dust penetration-protected, jet-proof]

Mech. impact protection code :

• IK08 [ 5 J vandal-protected]

Initial performance (IEC compliant)

Initial luminous flux (system flux) :

• 11500 lm

Luminous flux tolerance :

• +/-10%

Initial LED luminaire efficacy :

• 140 lm/W

Lamp colour temperature :

• 4000 K

Colour Rendering Index :

• >70

Initial input power :

• 80 W

Power consumption tolerance :

• +/-10%

Application conditions

Ambient temperature range :

• -40 to +50 °C

Product data

Full product code :

• 911401673106

Order product name :

• BRP491 LED115/NW 80W 220-240V DM GM

Order code :

• 911401673106

SAP numerator – quantity per pack :

• 1

Numerator – packs per outer box :

• 1

SAP material :

• 911401673106

Net Weight (Piece) :

• 3.600 kg
