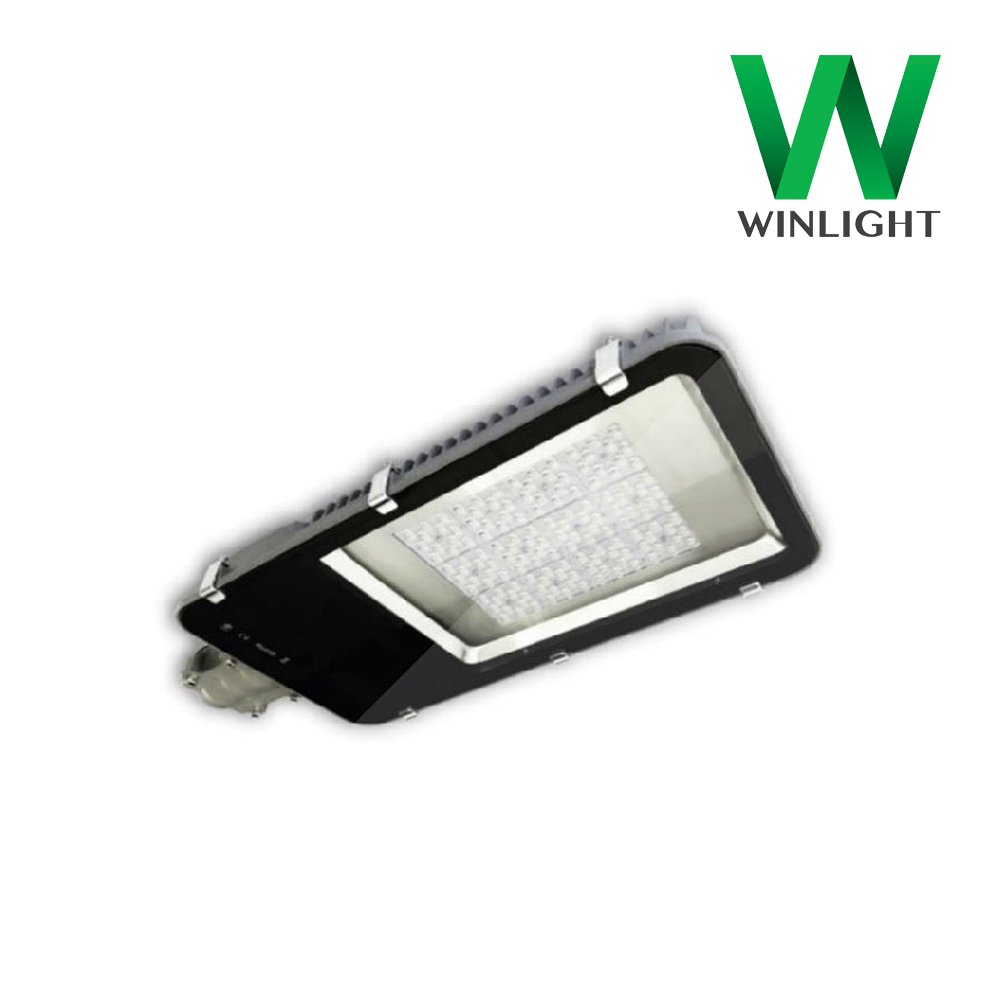

โคมไฟ Winlight STREET LIGHT VSL (1 วงจร)

   VSL

SPECIFICATION

Series : VSL (1 วงจร)

Rated Power (W) :

• 30W
• 50W
• 60W
• 70W
• 80W
• 100W
• 120W
• 140W
• 150W

Input Voltage :

• 100-277Vac , 50Hz

Power Factor :

• > 0.95

Harmonic (%THDi) :

• < 10%

Color Temperature :

• 3000K , 4000K , 5700K

Efficacy (lm/W) :

• 140

CRI :

• > 70 Ra (Option 80 Ra)

LED Chip :

• Lumileds 50000Hrs Life Time @L70 , IEC62471

Housing Meterials :

• Die-casting Aluminium with PC lens UV Protect

Heatsink :

• Passive Cooling Heatsink

Operating Temperature :

• – 40°C to +50°C

Protection Class :

• IP 66 / IEC60529 / มอก.513

IK Grade :

• IK 08 / IEC62262

Installation :

• Hole 45mm. – 65mm.
